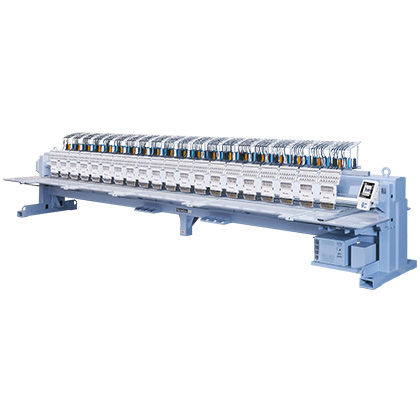

BELS Series（15 Colors / Latest Multi Head Model)

Function

• 01. New Tensioners

  • The large LED display makes it easy to monitor the machine's operating status. Updated thread guides make threading easy.



• 02. Servo Drive Motors

  • Powerful servo motors are designed for high productivity, reliability and excellent stitch quality.



• 03. 15 Needle In-Line Sewing Head

  • 15 colors reduces machine downtime by minimizing thread changes.
    Each head can be cancelled individually for single or small orders.



• 04. High Quality MK6 Trimmers

  • Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability.



• 05. Double Field Function (Continuous Designs)

  • BELS-S1518 800X400/500 Example:
    ☞ Maximum embroidery field: 800mm in vertical x 400mm in horizontal direction while using all 18 heads.
    ☞ Maximum embroidery field: 800mm in vertical x 500mm in horizontal direction while using 9 heads--either by even or odd numbered of heads

    (Note) Both even and odd number of heads can be selected and used in standard specification. Only odd number of heads can be used in some specifications.

• 06. Head Selection Function

  • Large, continuous embroidery can be produced by controlling each head individually.

• 07. Frame Outline Display

  • Frame can be displayed on the screen by reading the barcode attached on frame.
    ※A barcode reader is required

• 08. Frame Centering / Frame Limit Function

  • Places current design in the frame automatically

    Frame Centering function sets a design in a selected frame automatically.

• 09. Shortcuts

  • Customize most-used icons on the screen

  • Customize operation icons

    Can arrange a group of most used icons for easy access based on particular application.

• 10. Design Transfer / Machine Networking

  • USB conncetion

    Import and export designs data saved in USB memory

  • Bluetooth Design Transfer

    Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan L series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication—even large stitch count designs.
    ※ Bluetooth receiver and special software "Bluetooth Manager" are required separately

  • LAN connection

    B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
    ※ Special networking software is required separately. The number of connection is different depnding on the sotware.
