BEKT-S501CAII V250 CLAMP FRAME

TOP- PRODUCT - Line Up - BEKT-S501CAII V250 CLAMP FRAME

new
Single Head Machine

Single head model packed with the same technology as our multi-head machines.
A new model with a compact size designed for smaller spaces. The included clamp frame comes standard and allows easier hooping and position adjustment.
Equipped with 5 needles and a 250mm (V) x 250mm (H) embroidery area. Perfect for names and small logos.
A variety of frames are available for sewing on sports uniforms, workwear, school uniforms, shoes, socks, gloves, caps, bags and other items.

Model:	BEKT-S501CAII V250
Embroidery Area:	250X250
Number of Needles:	5

Function

01. Smaller Machine Size
- Compact size for smaller spaces

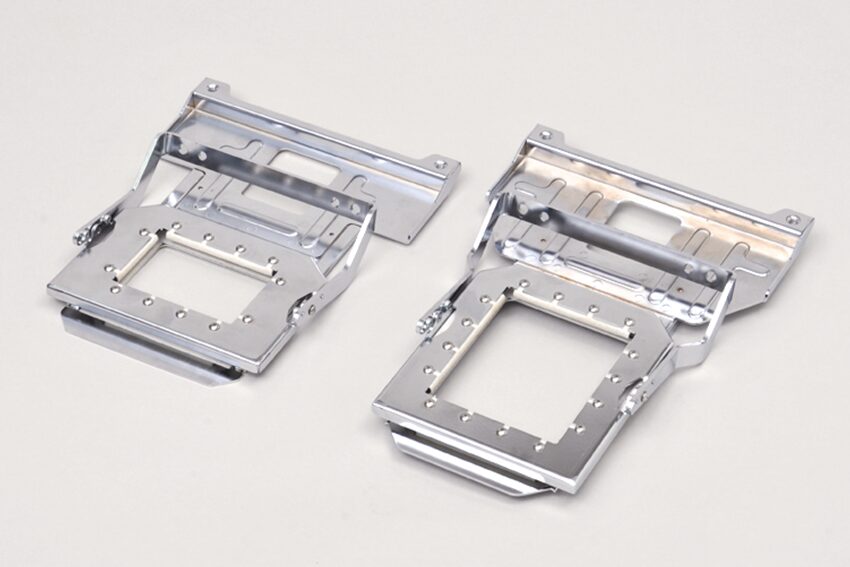

02. Clamp Frame Standard
- Clamp Frame Standard

  Select from the following frame sizes: 70mmX120mm, 90mmX140mm, 40mmX120mm.
- Easier hooping

  Hands free hooping using foot pedals for opening/closing the frame.
- Plate springs securly hold different materials and greatly reduce frame marks.

  Plate springs are designed to accept 3 sizes of clamp frames.
- New clips are designed to better hold backing

  Also helps to secure material to frame
  ※ New clips of caking paper (For CAII) is optional
03. New Tensioner
- Larger LED on Tensioner

  Brighter for easier monitoring of machine status
- Easier Threading

  New thread guide ensures faster and easier threading
04. Open Bridge-Type Chassis
- Open bridge-type chassis allows more room for easier sewing on shoes and bags.
05. Laser Marker (Cross) Standard
- Laser pointer provides fast hoop centering and embroidery starting point.
06. Name Drop
- Easy to view multiple name design

  Separates names in a multiple name design for veryfing and sewing purposes. Helps to avoid errors.
- Easy to repair name

  Access a single name if you need to repair it.
- Audible Alert

  When a name is finished sewing, machine beeps to notify operator to change over to the next item to be sewn.
  Operator is free to perform other tasks while machine is running.
07. Hoop Outline Display
- Displays the frame being used on screen by scanning a barcode attached to the frame.
  ※Barcode reader is required separately.
08. Frame Centering / Frame Limit Function
- Places current design in frame in use automatically

  Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
- Prevents machine operation if design is outside of frame limit

  Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
09. Shortcuts
- Customize most-used icons on the screen
- Customize operation icons

  Can arrange a group of most used icons and access them based on a particular application.
10. Cap Frame / Clamp Frame Mode
- Easy to change from Clamp/Cap/Blue Frame mode.

  Changes the setting of corresponding frame automatically by pressing dedicated icons on the screen.
11. Design Transfer/Machine Networking
- USB conncetion

  Import and export design data saved in USB memory
- Bluetooth Design Transfer

  Barudan's Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines.
  Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to current serial communication.
  No stress waiting to send design data with large stitch counts.
  ※ Bluetooth receiver and special software "Bluetooth Manager" are required separately
- LAN connection

  B-NET networking sofware connects up to 100 machines. Using LAN Ethernet conncetion, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode.Additional features, such as web-based dashboards, machine status and production reports can be added.
  ※ Special networking software is required separately. The number of connection is different depnding on the sotware.

Machine Specifications

Clamp Frame Standard x 1 (From 70×120, 90×140, 40×120)
Clamp Frame ASSY
Duct Unit For Clamp
※ Air compressor (not included) is required.(1 horse power recommended)
Foot For Clamp x 2
Laser Marker (Cross)

Machine Specifications

Other Standard Specifications	・LAN port x 1 ・USB port x 1 ・8.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs
Embroidery Area （mm）	250X250
Cap Frame （mm）	(Wide) H 72 x V 250 (Semi-Wide) H 72 x V 172
Clamp Frame （mm）	Follows a clamp frame in use
Number of Needles	5
Stitch Length （mm）	0.1~12.7
Speed （rpm）	(Blue frame, Portal frame）200~1200 (Clamp frame, Cap frame）200~1000
Power Supply （V）	1P AC100V~AC240V
Consumption （kW）	0.225

・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.

・The speed indicated above may vary depending on stitch length, materials and so on.

・Machines and specifications are subject to change at any time without prior notice.

	Dimensions（mm）	Weight（kg）
L	442	71
W	930
H	965
A	570
B	690
C	765
E	810

Machine Dimensions

Other Standard Specifications	・LAN port x 1 ・USB port x 1 ・8.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs
Embroidery Area （mm）	250X250
Cap Frame （mm）	(Wide) H 72 x V 250 (Semi-Wide) H 72 x V 172
Clamp Frame （mm）	Follows a clamp frame in use
Number of Needles	5
Stitch Length （mm）	0.1~12.7
Speed （rpm）	(Blue frame, Portal frame）200~1200 (Clamp frame, Cap frame）200~1000
Power Supply （V）	1P AC100V~AC240V
Consumption （kW）	0.225
