TOP- PRODUCT - Embroidery Machine - B-NET Series（Complete Production Management Software）
B-NET Series（Complete Production Management Software）
  • Network / Design Transfer
  • new

B-NET Series（Complete Production Management Software）

By synchronizing the embroidery machine with network software, it enables design data and production management, significantly improving production efficiency.
The connection method is via LAN.
B-NET Workgroup allows for the management, editing, and transfer of design data.
B-NET Pro allows for the management, all the features of B-NET Workgroup, and monitoring of machine operation status, tracking of production numbers, and maintenance management.
B-NET Enterprise allows for the management, all the features of B-NET Pro, and also supports adding additional production info using Barudan's new format, FDR3.

Model: B-NET Workgroup / B-NET Pro / B-NET Enterprise

Product Lineup

  • B-NET Workgroup

    • This product manages, edits, and transfers design data.

      - Functions -
      ◎Connection Method: LAN
      ◎Connectable Units: Selectable from 10, 50, or 100 units
      ◎Managemenat Editing and transfering design data

  • B-NET Pro

    • This product handles design data management, editing, and transfer, as well as monitoring machine operation status, tracking production counts, and maintenance management

      - Functions -
      ◎Connection method: LAN
      ◎Connectable Units
      ◎Managemenat Editing and Transfering Design Data
      ◎Displays machine status, production counts, and thread break statistics.

  • B-NET Enterprise

    • This product handles design data management, editing, and transfer, as well as monitoring machine operation status, tracking production counts, and maintenance management, and also supports adding additional production info using Barudan's new format, FDR3.

      - Functions -
      ◎Connection method: LAN
      ◎Connectable Units
      ◎Managemenat Editing and Transfering Design Data
      ◎Displays machine status, production counts, and thread break statistics.
      ◎Production information and thread colors in the new format FDR3 are controlled by the L series and K series automat.
      ◎Some functions can be controlled and monitored via HTTP communication, allowing integration with existing systems used by customers.

Main Function

  • 01. Design File Server

    • Connect the embroidery machine and computer via LAN to transfer design data from a server or other storage locations to the machine.

      Compatible with：B-NET Workgroup / B-NET Pro / B-NET Enterprise

  • 02. Design File Function Editor

    • You can edit color change functions within design data. When using the new FDR-II V6 format, you can insert or modify all operational functions.

      Compatible with：B-NET Workgroup / B-NET Pro / B-NET Enterprise

  • 03. Design File Explorer

    • Design data can be displayed in Windows Explorer format, making management easy.

      Compatible with：B-NET Workgroup / B-NET Pro / B-NET Enterprise

  • 04. Swing Machine Manager

    • You can display the placement of embroidery machines on a map.
      Icons indicate the operational status of each machine, allowing for easy monitoring.

      Compatible with：B-NET Pro / B-NET Enterprise

  • 05. B-NET Reporting

    • It displays the production counts and thread breakage statistics for the embroidery machines.
      Compatible with：B-NET Pro / B-NET Enterprise

  • 06. B-NET WEB

    • It displays the operational status and simplified statistical results of the embroidery machines on a web browser. The browser allows viewing regardless of the OS or device conditions.

      Compatible with：B-NET Pro / B-NET Enterprise

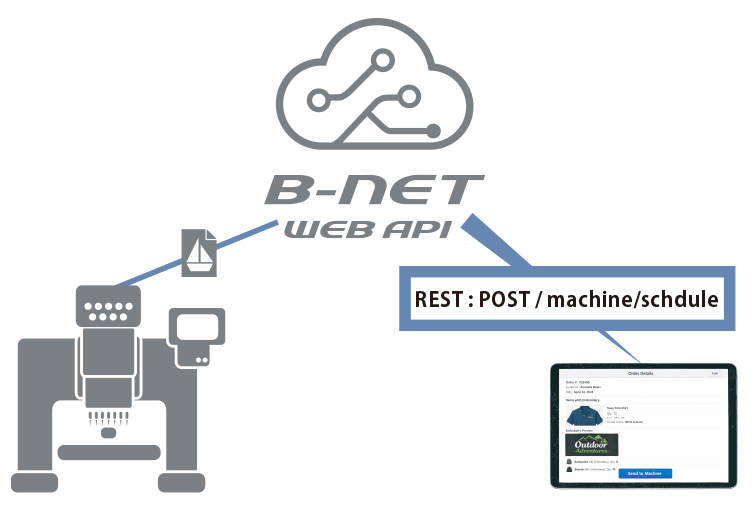

  • 07. B-NET WEB API

    • By using HTTP communication, you can control and monitor some of the functions included in B-NET, allowing integration with your existing systems.

      Compatible with：B-NET Enterprise

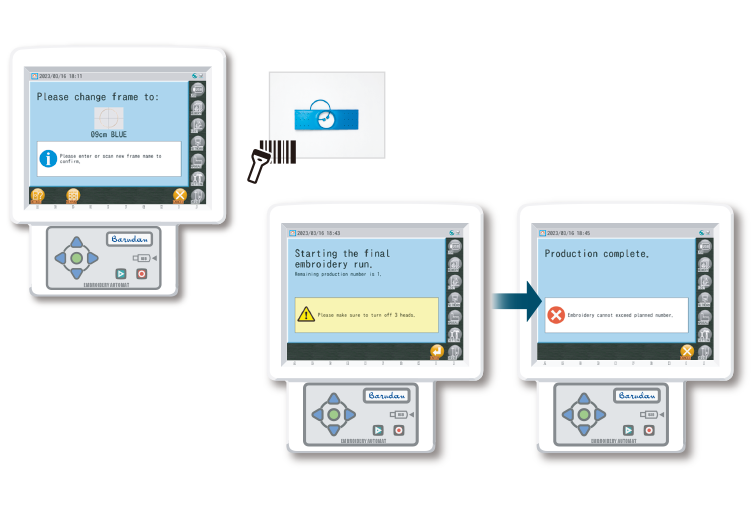

  • 08. Control Function in FDR3

    • Frame outline specification function, Number of pieces control function in FDR3, etc.

      Production information in the new format FDR3 are controlled by the L and K series automat.

      Compatible with：B-NET Enterprise

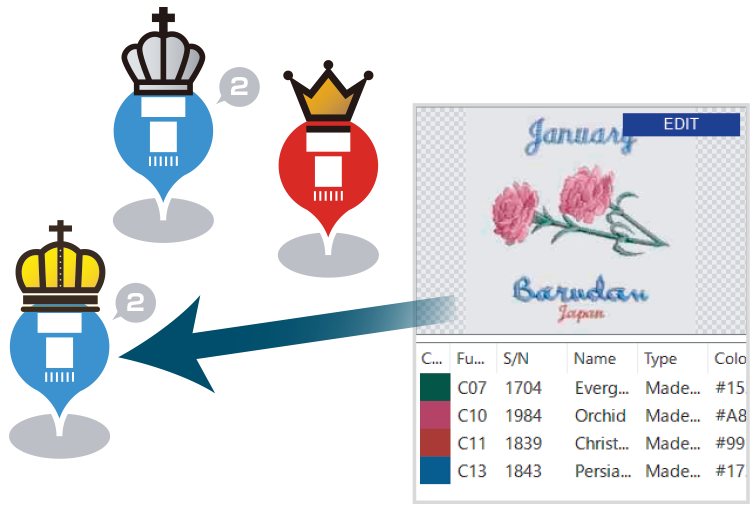

    • Function for selecting the machine with the most efficient thread replacement.

      The thread colors currently on all machines are compared with the thread color to be used in the next production run, and the machine with the fewest thread changes is selected.

      Compatible with：B-NET Enterprise

  • 09. B-NET ORDER MANAGEMENT

    • Situation Using in Order Management:

      Compatible with：B-NET Enterprise

System requirements

Supported OS Windows 10 / 11 ※64-bit only
Windows Server 2016 / 2019 / 2022
CPU Intel Core i5 or more 4GHz or more
Required Memory At least 4GB
Required hard disk space At least 10GB
Resolution XGA (1024 X 768) or more
Color depth Maximum（32-bit)
Others ◎A LAN environment must be in place, and communication via TCP/IP should be abailable.
◎The automat must support LAN connections.
◎Do not use a USB-LAN converter.
